绝缘法兰是对埋地钢管的密封性能和电腐蚀管道的电绝缘性能有要求的管法兰接头的总称。它包括一对钢制法兰，两个法兰之间的绝缘和密封件，两端焊接。绝缘法兰是我们专门为石油、化工等相关行业设计和生产的。以其结构简单、操作安全、性能可靠，一直深受广大食客的喜爱。这些绝缘法兰已经成熟，如有特殊要求，可根据客户的所有需求进行定制。
用法：
绝缘法兰主要应用于输气管道、气体调节器、仪表、储存等。
其主要功能是对不同段的输气管道、装置进行隔离和绝缘
和线路，保护它们免受任何化学腐蚀并延长其使用寿命。遵循标准
SY/T0516-1997《绝缘法兰设计技术》
类别：

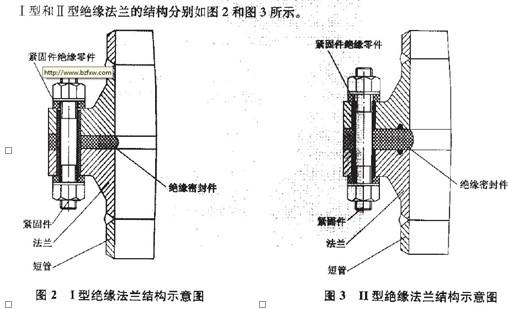

这些产品可根据绝缘密封件分为两类，具体如下：
压力密封绝缘法兰（简称I型绝缘法兰）和自紧式密封
绝缘法兰（简称II型绝缘法兰）。 I型绝缘的适用范围
法兰：公称压力（PN）≤2.5MPa。
特征：
1、具有电腐蚀管道的电绝缘性能；
2、在管道介质的设计温度和压力下具有持久可靠的性能，
足够的强度和良好的密封能力；
3、结构合理，组装拆卸更换方便。
主要规格：
1、适用于天然气、城市燃气、LPG和轻油；
2、介质温度：-10℃~ + 60℃；
3、环境温度：-20℃~ + 60℃；
4、绝缘电阻：≥500KΩ；
5、击穿电压：≥3KV；
6、压力范围：PN0.6MPa、PN1.0MPa、PN1.6MPa、PN2.5MPa
7、规格：DN50-DN1200 (2"~48")　

Insulating flange is a generic term of pipe flange joints with requirements in sealing performance of buried steel pipes and electrical insulation properties of electro-corrosion pipes. It include a pair of steel flanges, an insulating and sealing article between two flanges with each end welded.The insulating flanges are specially designed and produced for petroleum, chemical and other industries related by us. With their simple structures, safe operations and reliable performance, they have always enjoyed eat popularity among all customers. These insulating flanges have already matured and in case of any special equirements, they may be customized upon all customer's demands.

USAGE:
Insulating flanges are mainly applied to gas transmission pipelines, gas regulators, gauges, storages etc.
With their main functions to separate and insulate different segments of?gas transmission pipes, devices
and lines, protect them form any chemical corrosion and prolong their service life. Follow the standard
SY/T0516-1997 "The technic of design for Insulating flange"
CATEGORY:
These products may be classified into two groups by the insulating sealing parts, which are specific-
pressure sealed insulating flanges (for short, I-type insulating flanges) and self-tightening seal
insulating flanges (for short, II-type insulating flanges). Scope of application of the I-type insulating
flanges: nominal pressure (PN)≤2.5MPa.
FEATURES:
1,With electrical insulation properties of electro-corrosion pipes;
2,With durable and reliable performance at a designed temperature and pressure for pipeline mediums,
sufficient strength and good air-proof ability;
3,With rational structure, easy assembly disassembly and replacement.
MAINLY SPECIFICATION:
1,Suitable for natural gas, city gas, LPG and gently oil;
2,Medium temperature:-10℃~ + 60℃;
3,Ambient temperature:-20℃~ + 60℃;
4,Insulating resistance:≥500KΩ;
5,Breakdown voltage:≥3KV;
6,Pressure range:PN0.6MPa, PN1.0MPa, PN1.6MPa, PN2.5MPa
7,Specs: DN50-DN1200 (2"~48")
